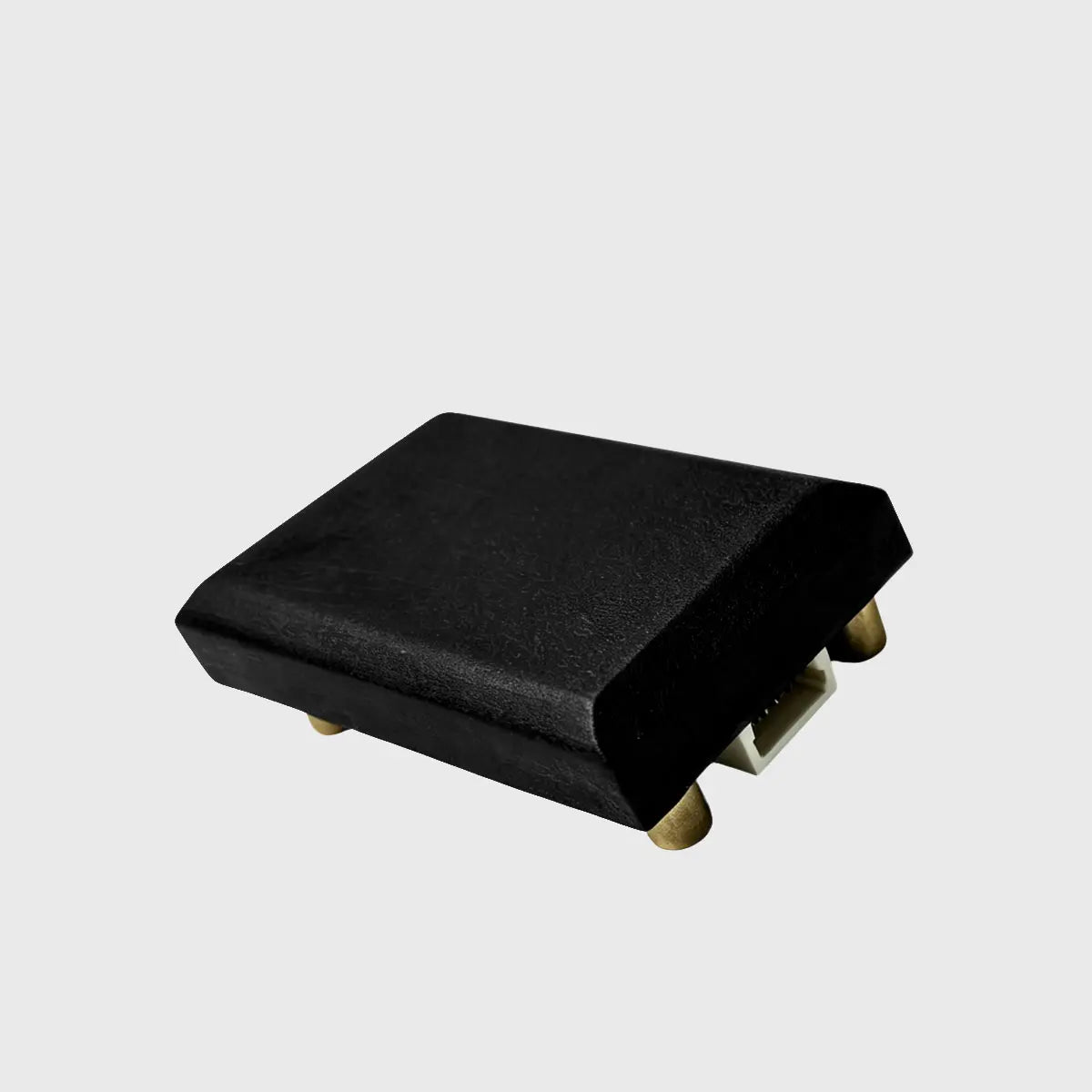

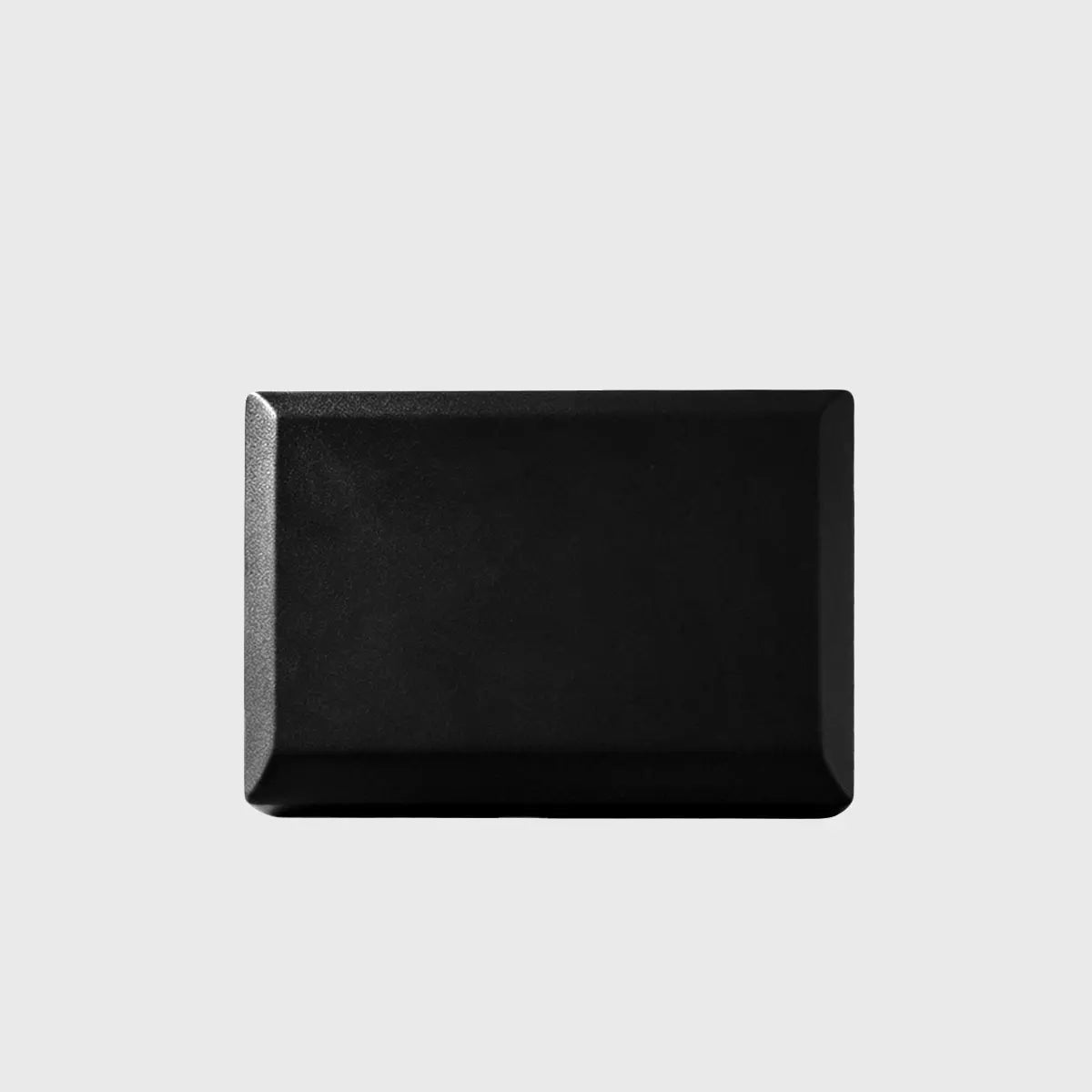

T30 Gesture-Recognition Tactile Sensor
The T30 is a compact flexible tactile sensor for direct gesture-based robot control. Recognizing 7 standard touch gestures — single tap, slide, and clockwise/counterclockwise circles — it decodes gesture commands over RS-485 and drives connected robotic arms in real time with low interaction latency.
Specification
Length (mm) 30
Width (mm) 20
Communication Interface RS-485
Gesture Recognition 7 gesture types
Protocol Header 0xA5 (uint8, 1 byte)
Protocol Data Field 0x00 (uint8, 1 byte)
Board ID 0x00~0xFF (uint8, 1 byte)
Data Length 9 (uint16, 2 bytes)
Sensor Type 0x01 (uint8, 1 byte)
Sensor Model 0x0B (uint8, 1 byte)
Data ID 0~65535 (uint16, 2 bytes)
Experience real-time tactile data visualization. The Lizion Future software platform empowers you to seamlessly process, map, and analyze multi-axis pressure data. Watch how we transform raw sensor feedback into actionable insights.
Discover elevated design
Robotic Dexterous Gripping
Flexible tactile sensor arrays for force closed-loop control and grasping.
Automotive Smart Interiors
Thin-film skins for pressure distribution mapping and HMI seat sensing.
Prosthetic Haptic Feedback
High-performance e-skin for sensory feedback and joint motion tracking.
VR/AR Haptic Interactors
Flexible strain sensors for force feedback and fine gesture capture in VR.
Clinical Patient Monitoring
Flexible sensors for pulse wave monitoring and bedsore prevention.
We Offer Custom Product
Every project is unique. Lizion Future provides comprehensive customization for our flexible tactile sensors. From bespoke geometries and specialized force ranges to tailored spatial resolutions and communication interfaces, our engineering team works closely with you to deliver a sensor perfectly integrated into your specific application.
