LZTCM Integrated Gripper Force Sensor
$0.00 USD
Skip to product information
Request Now

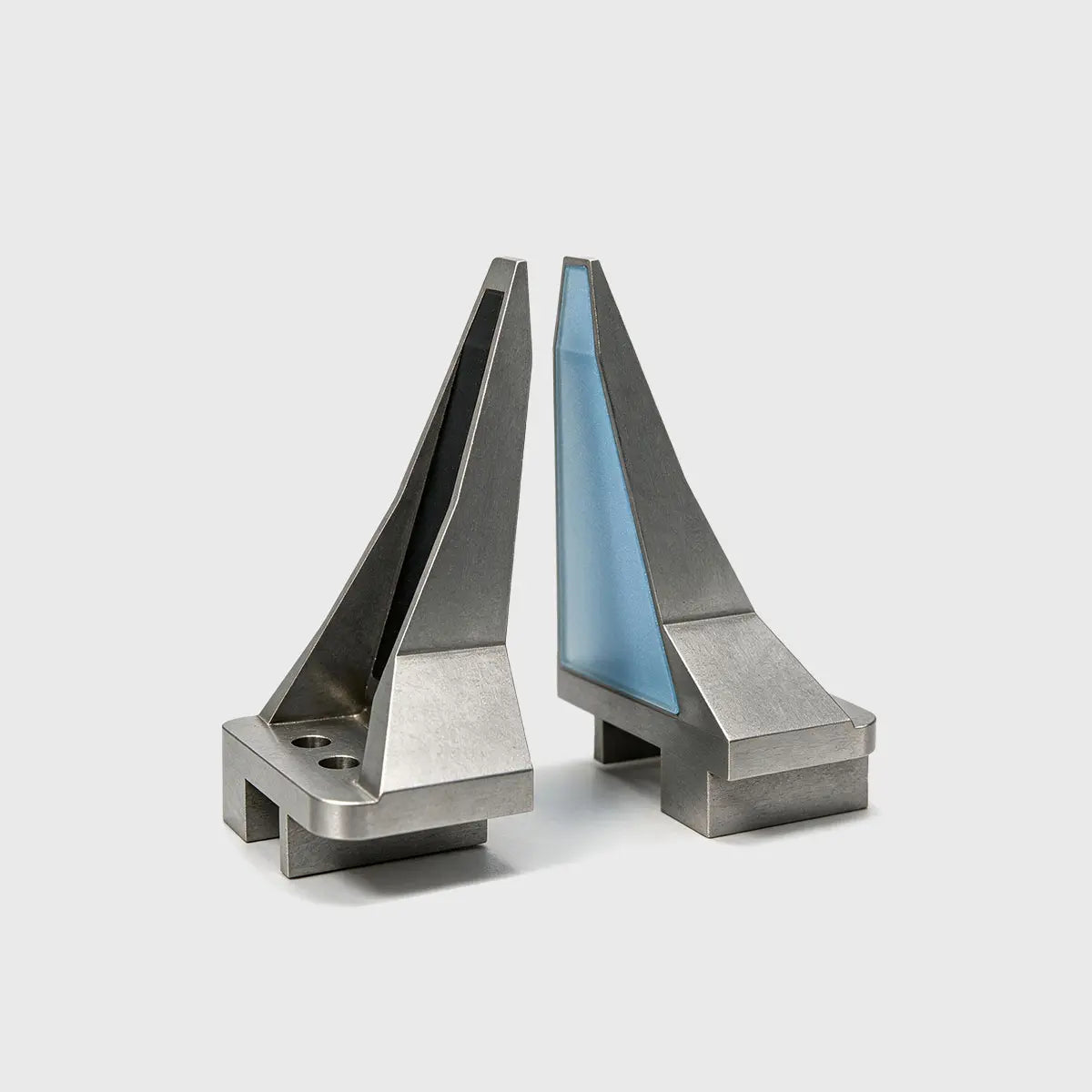

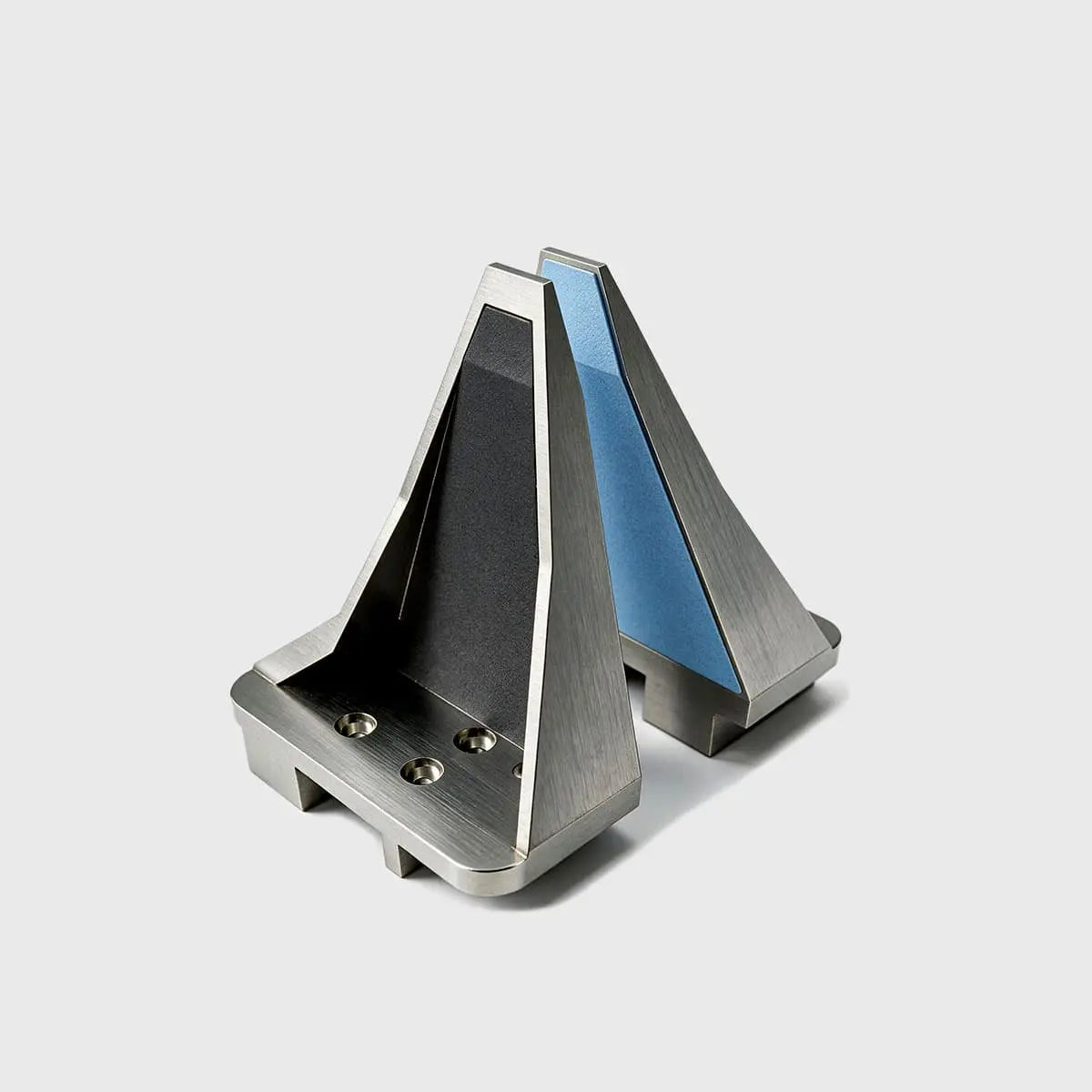

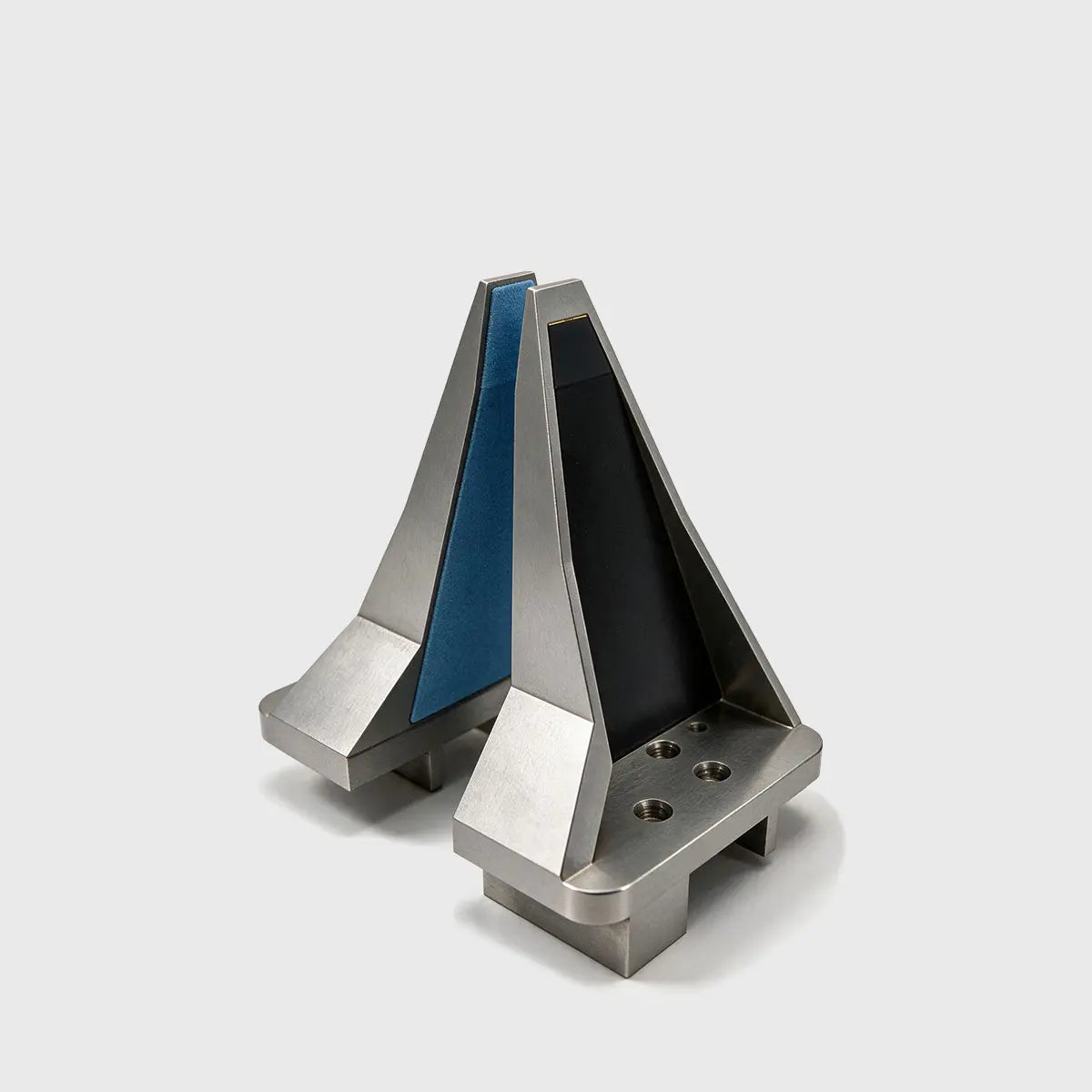

LZTCM Integrated Gripper Force Sensor
The LZTCM is a fully integrated force/tactile sensor built directly into the gripper jaw geometry, requiring no additional mounting hardware. With 0.01N normal force accuracy, 1mm position resolution, and dual-axis (normal/tangential) repeatability, it delivers real-time grip force monitoring to prevent workpiece slippage or crushing — compatible with industrial grippers and robotic systems via UART, RS-485, or USB.
Specification
Product Model LZTCM
Tangential Force Accuracy (%FS) 1.5
Normal Force Range (N) 30
Normal Force Repeatability (%FS) 1
Normal Force Resolution (N) 20 (to be confirmed)
Tangential Force Repeatability (%FS) 1.5
Normal Force Accuracy (N) 0.01
Position Resolution (mm) 1
Normal Force Repeatability (%FS) 1
Sampling Frequency (Hz) 1 ~ 200
Ingress Protection (IP Rating) IP68
Communication Interface UART/RS485/USB
Experience real-time tactile data visualization. The Lizion Future software platform empowers you to seamlessly process, map, and analyze multi-axis pressure data. Watch how we transform raw sensor feedback into actionable insights.
Discover elevated design
Robotic Dexterous Gripping
Flexible tactile sensor arrays for force closed-loop control and grasping.
Automotive Smart Interiors
Thin-film skins for pressure distribution mapping and HMI seat sensing.
Prosthetic Haptic Feedback
High-performance e-skin for sensory feedback and joint motion tracking.
VR/AR Haptic Interactors
Flexible strain sensors for force feedback and fine gesture capture in VR.
Clinical Patient Monitoring
Flexible sensors for pulse wave monitoring and bedsore prevention.
We Offer Custom Product
Every project is unique. Lizion Future provides comprehensive customization for our flexible tactile sensors. From bespoke geometries and specialized force ranges to tailored spatial resolutions and communication interfaces, our engineering team works closely with you to deliver a sensor perfectly integrated into your specific application.
