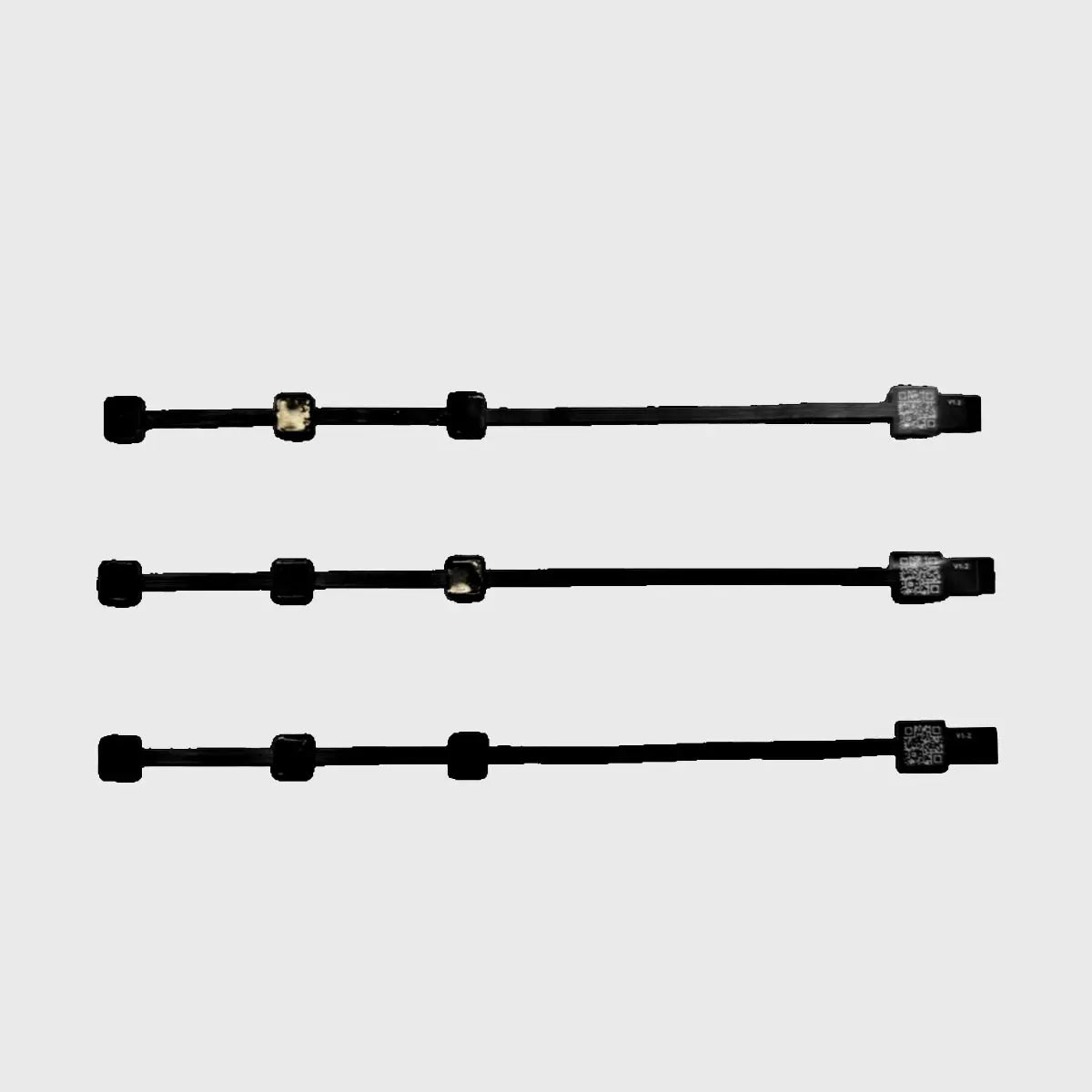

T8 Linear Array Tactile Sensor
The T8 is a flexible, segmented tactile sensor built for narrow and irregular surface integration. Its bendable substrate conforms to curved geometries, while epoxy-sealed sensing units provide IP67 dust and moisture protection for harsh industrial environments. With sub-10ms response time and customizable sensor spacing, it adapts to a wide range of contact-sensing layouts.
Pressure range
−2–2kg/cm²
Pressure resolution
0.0001kg/cm²
Interface
UART/USB
Custom configurations
Ranges, mounting and interface can be configured to your platform. Tell us what you need.
Specification
Rated Pressure Range (kg/cm²) -2 ~ 2 (≈ -196 ~ 196 kPa)
Full-Scale Output Resolution 20,000 counts (at 2 kg/cm²)
Theoretical Resolution (kg/cm²) 0.0001 (≈ 0.0098 kPa)
Comprehensive Accuracy 10 N (Customizable)
Communication Interface UART/USB
Communication Rate (bps) 9600 ~ 1,000,000 (adjustable)
Ingress Protection (IP Rating) IP67
Measurement Temperature Range (°C) -20 ~ +70
Temperature Sensitivity (°C) ≥ 0.1
Temperature Test Accuracy (°C) ≤ ±0.3
Supply Voltage (VDC) 5.0 ±5%
Output Update Rate (Hz) 1 ~ 200 (adjustable)
Storage Temperature Range (°C) -30 ~ +85
Media Compatibility Air and non-corrosive gases/liquids in direct surface contact
Array Configuration 128 × 64 (to be confirmed)
Compare in this series
Three 6-axis models, different trade-offs.
| Model | Pressure range | Resolution | Size | Interface |
|---|---|---|---|---|
T8
| −2–2 kg/cm² | 0.0001 kg/cm² | Not specified | UART/USB |
T30
| Not specified | Not specified | 30 × 20 mm | RS-485 |
T160
| 0–500 N (Customizable) | 0.01 N (Customizable) | 161 × 150 mm | UART/USB |
T15G
| −5–20 N (Customizable) | 0.01 N (Customizable) | 15 × 13 mm | UART/USB |
T290F
| 0–5 N/cm² (Customizable) | 0.005–0.01 N/cm² (Customizable) | 300 × 300 mm | RS-485/UDP |
T53A
| −5–20 N (Customizable) | 0.001 N (Customizable) | 53 × 25 mm | UART/USB |
Where it is used
Robot skinFull-surface contact awareness
Structural monitoringImpact load on large structures
Custom configurations
Standard models cover most integrations, but not all. We adapt force and torque ranges, flange bolt patterns, cable exit direction, housing height and communication interfaces to your platform.
