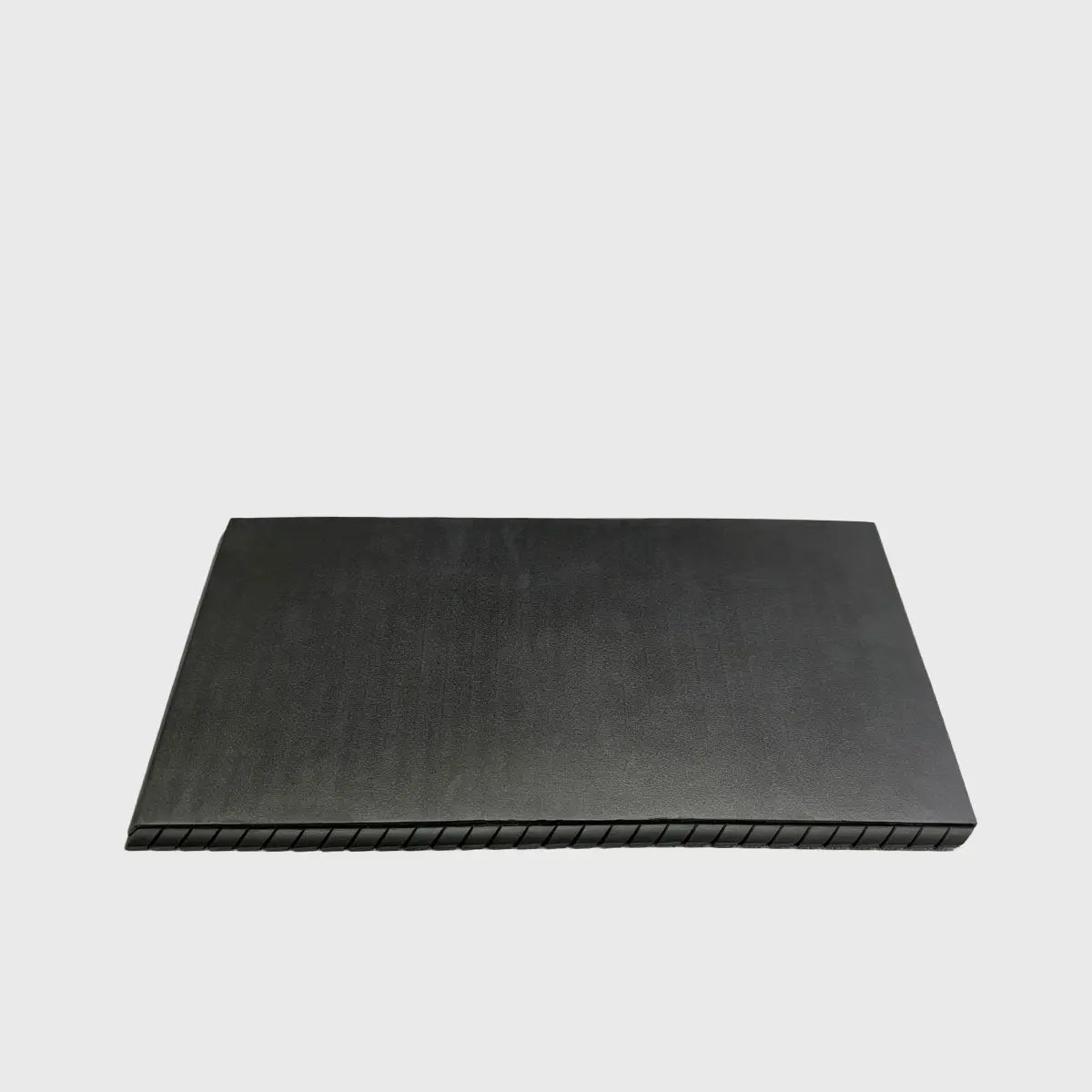

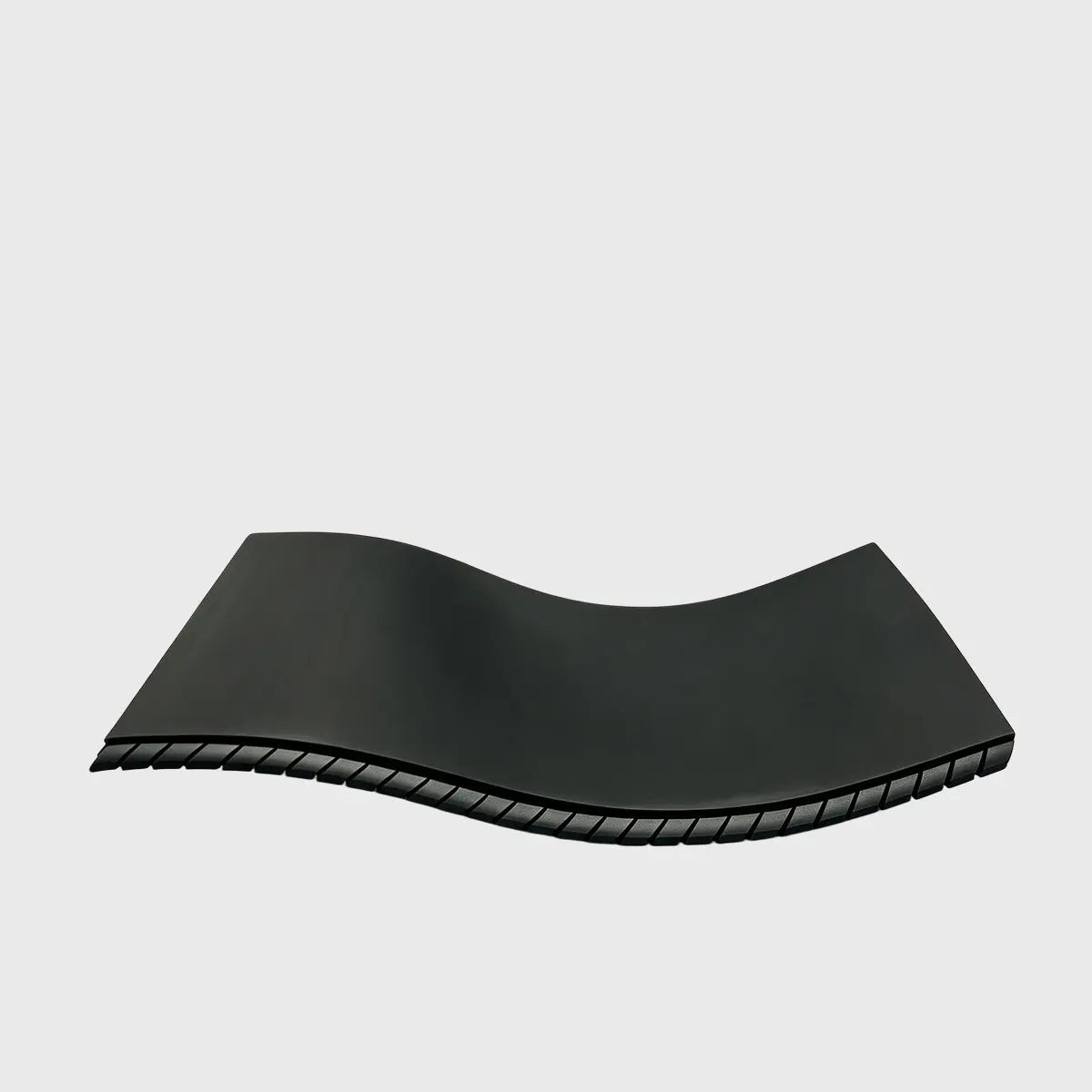

T290F Curved Flexible Tactile Sensor
The T290F is a curved, flexible tactile sensor engineered for structural impact monitoring in harsh outdoor environments. Its modular arc-shaped design conforms to cylindrical surfaces such as offshore wind turbine foundations, capturing full-field wave impact pressure at up to 80Hz. With IP67 protection and a 12–24V wide-voltage supply, it delivers reliable long-term data for structural integrity and fatigue life analysis.
Specification
Supply Voltage (VDC) 12 ~ 24
Communication Interface RS-485/UDP (Customizable)
Sampling Frequency (Hz) 80
Sensor Dimensions (mm) 300 × 300 (unrolled arc surface)
Position Resolution (mm) 2 ~ 5
Minimum Pressure Resolution (N/cm²) 0.005 ~ 0.01 (Customizable)
Maximum Pressure Range (N/cm²) 5 (Customizable)
Operating Temperature (°C) 0 ~ 50
Storage Temperature Range (°C) -20 ~ 70
Ingress Protection (IP Rating) IP67
