LZR57-CAN Lightweight 6-Axis Force Sensor
$0.00 USD
Skip to product information
View all specifications

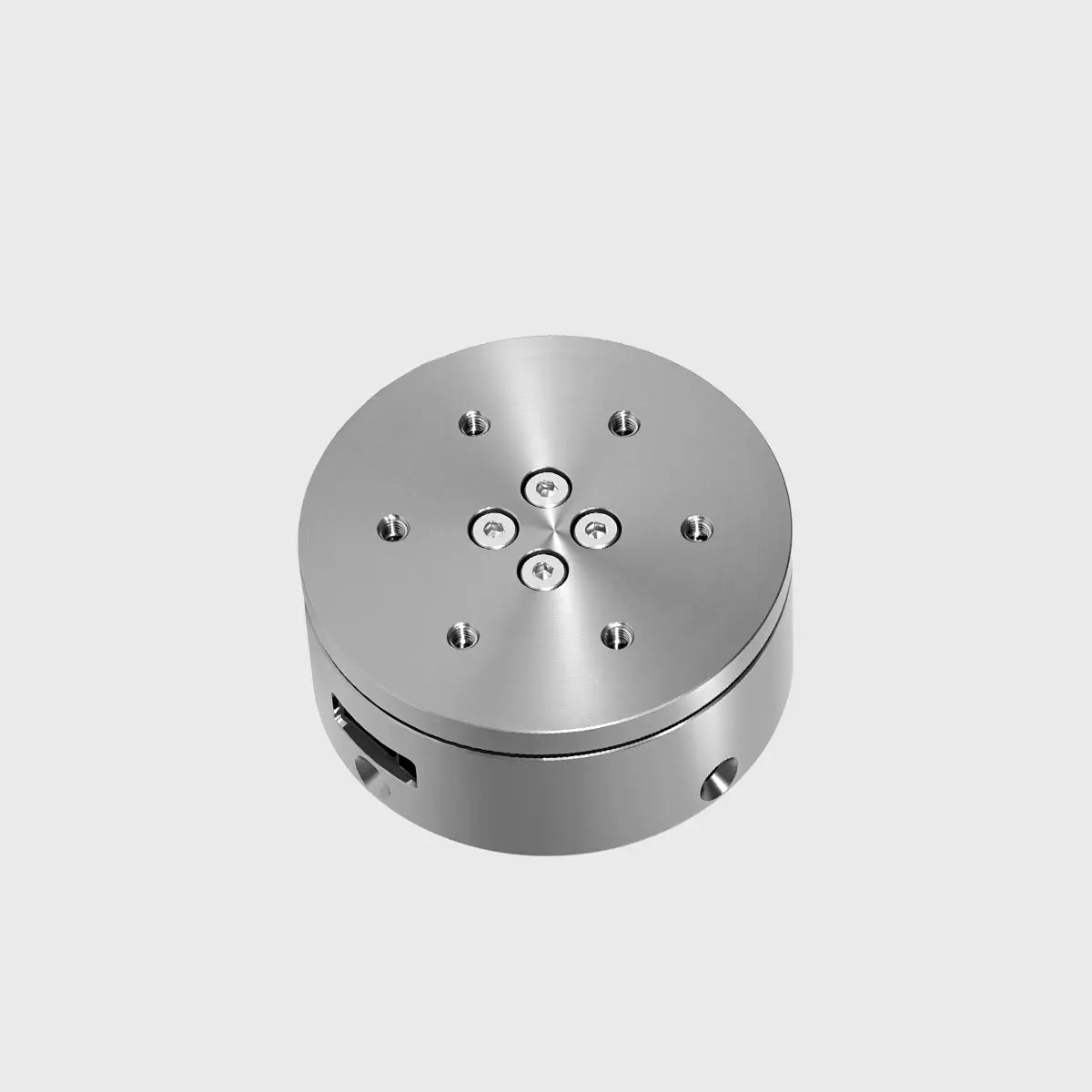

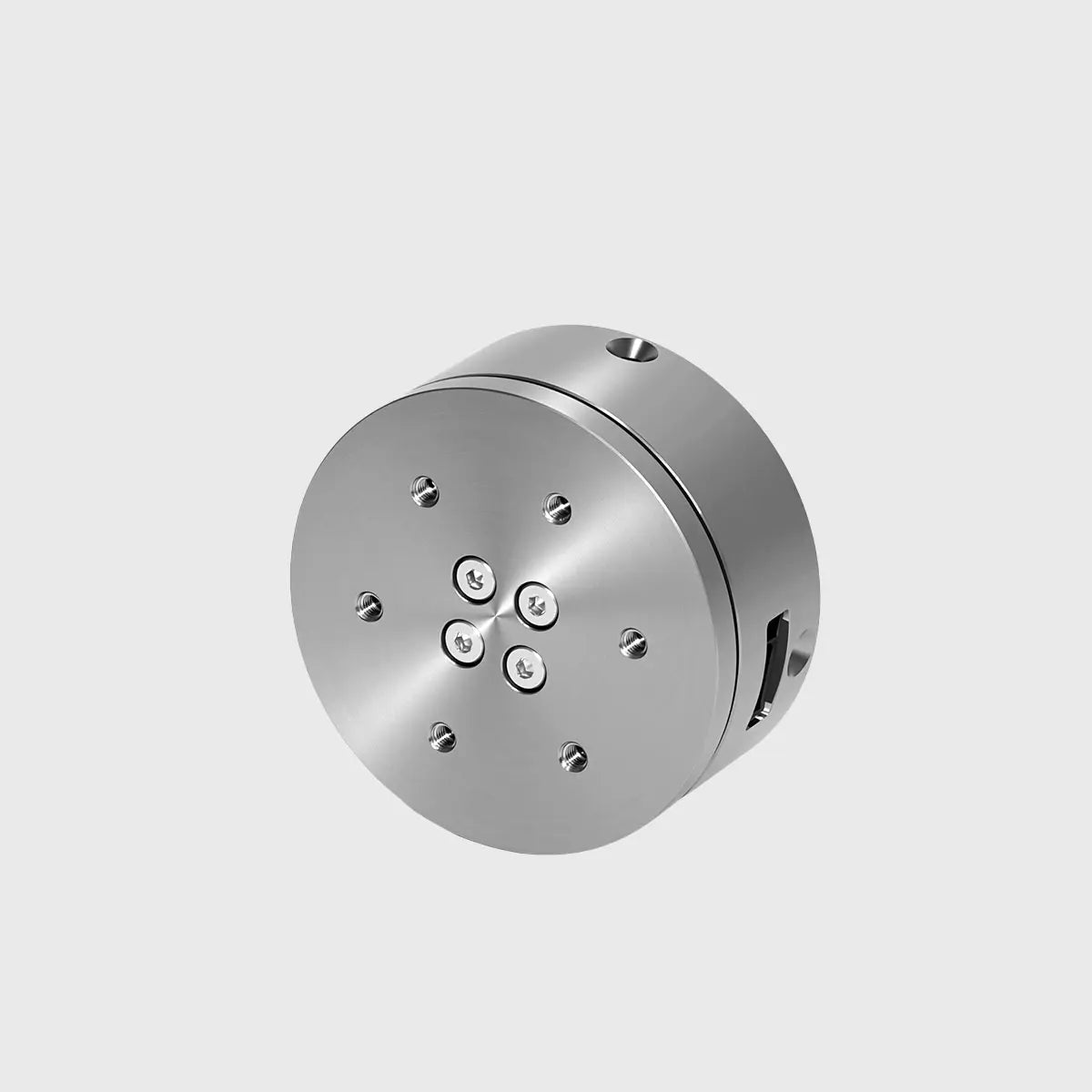

LZR57-CAN Lightweight 6-Axis Force Sensor
The LZR57-CAN is a lightweight 6-axis force/torque sensor with native CAN/CAN-FD bus support, designed for direct integration onto collaborative robot arm end-effectors. Its freely configurable 1–500Hz sampling rate adapts to grasping, polishing, and assembly tasks, while the anodized aluminum housing delivers consistent accuracy through long-duration continuous operation.
Force
80N
Torque
3Nm
Overload
500%FS
Size
Φ57 × 25.3mm
Interface
CAN/CAN-FD
Custom configurations
Ranges, mounting and interface can be configured to your platform. Tell us what you need.
Specification
Force Range (Fx, Fy) 80 N
Force Range (Fz) 80 N
Torque Range (Mx, My) 3 Nm
Torque Range (Mz) 3 Nm
Overload Capacity 500% FS
Repeatability (%FS) 0.2
Accuracy (%FS) 0.2
Resolution (%FS) 0.1
Supply Voltage (VDC) 12~48
Communication Interface CAN/CAN-FD
Sampling Frequency (Hz) 1~500
Operating Temperature (°C) -10 ~ 80
Weight (g) 112.5
Ingress Protection (IP Rating) IP64
Compare in this series
Three 6-axis models, different trade-offs.

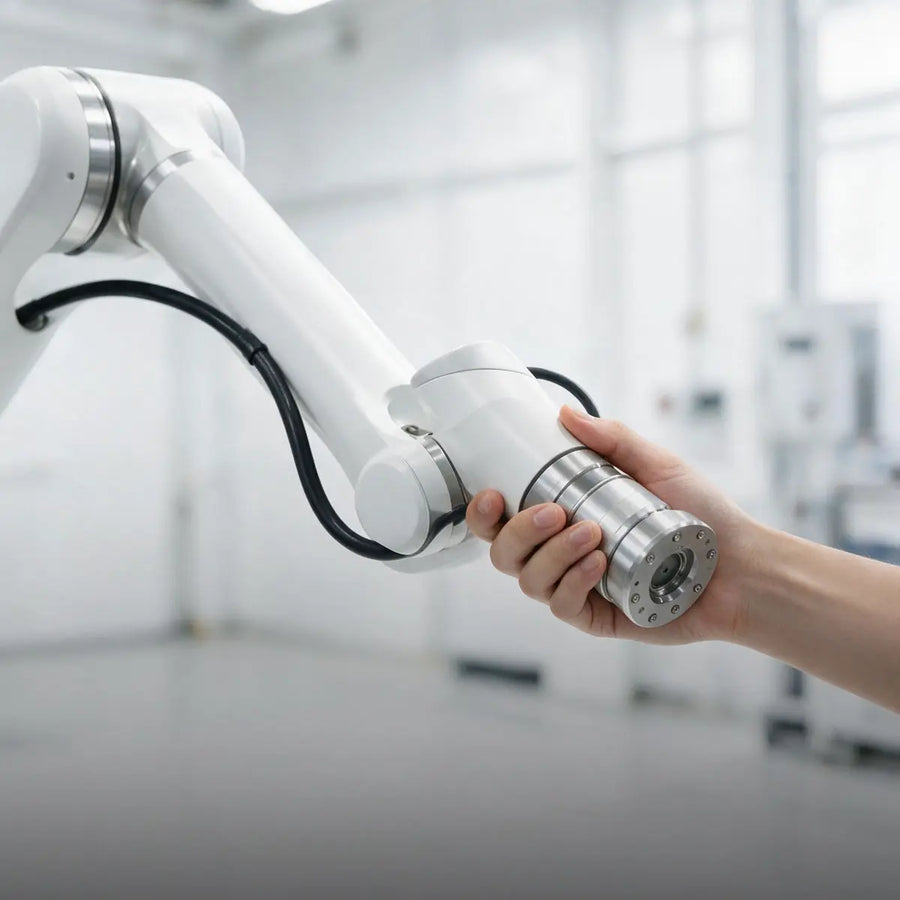

Where it is used
Custom configurations
Standard models cover most integrations, but not all. We adapt force and torque ranges, flange bolt patterns, cable exit direction, housing height and communication interfaces to your platform.
