Compact & Lightweight
High Measurement Accuracy
Synchronized 6-Axis Sensing
Rugged & Adaptable
LZR48 Lightweight 6-Axis Force Sensor
$0.00 USD
Skip to product information
Request Now

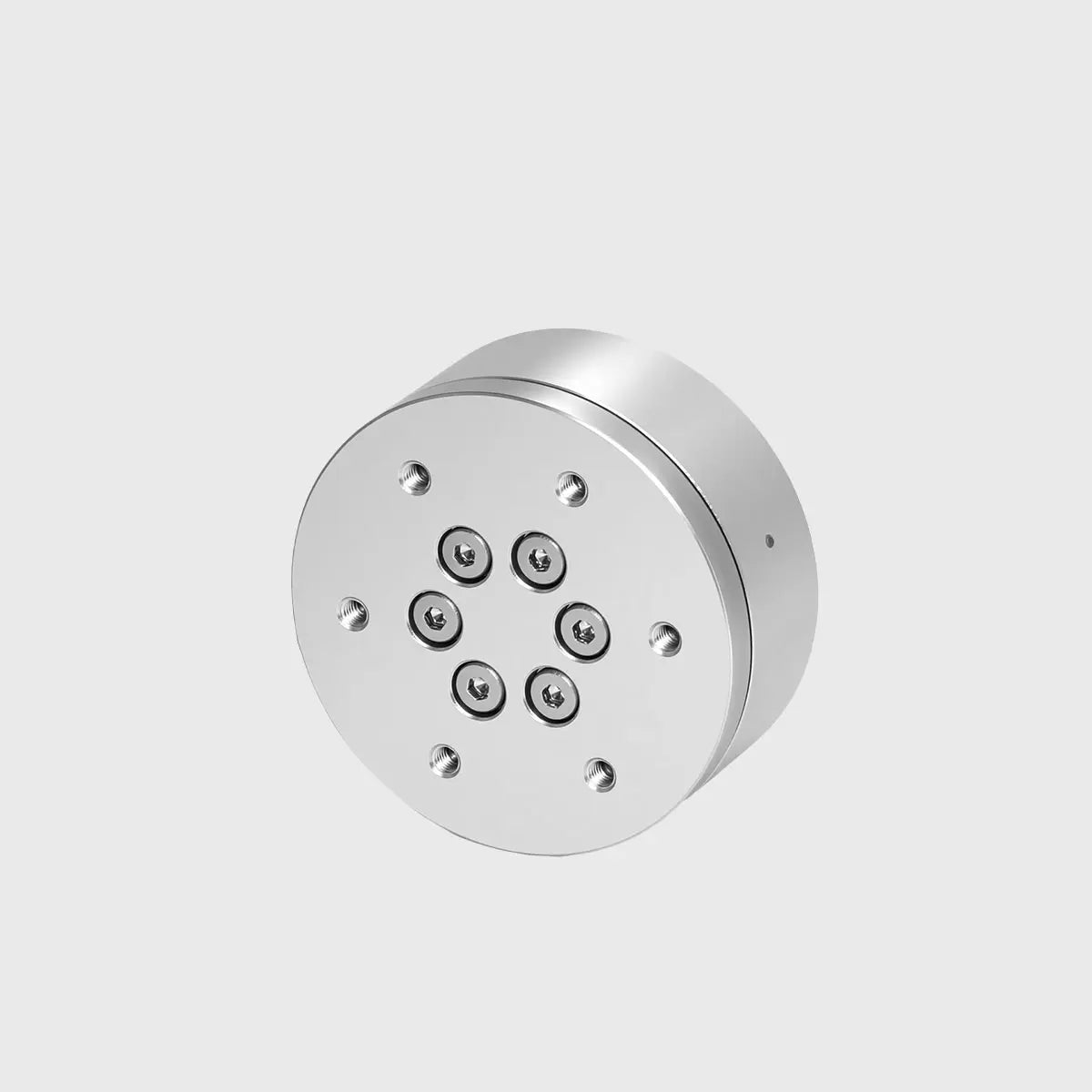

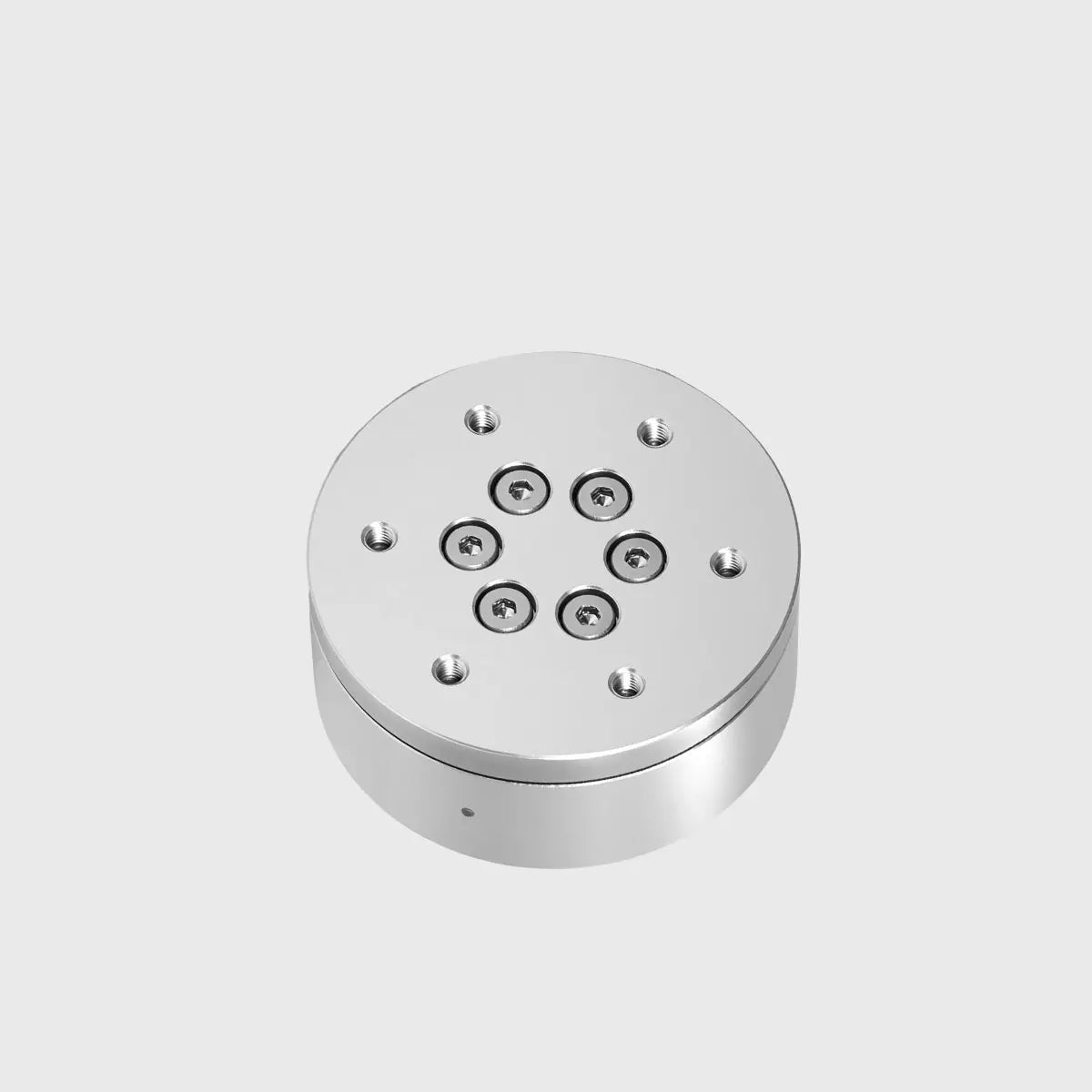

LZR48 Lightweight 6-Axis Force Sensor
The LZR48 is a compact, lightweight 6-axis force/torque sensor engineered for tight installation spaces. Weighing just 80g with 1000% FS overload capacity and IP67 protection, it delivers stable six-axis force sensing across demanding environments — from collaborative robot arms to industrial automation.
Specification
Force Range (Fx, Fy) 200 N
Force Range (Fz) 200 N
Torque Range (Mx, My) 5 Nm
Torque Range (Mz) 5 Nm
Overload Capacity 1000% FS
Repeatability (%FS) 0.2
Accuracy (%FS) 0.2
Resolution (%FS) 0.1
Supply Voltage (VDC) 5.5~24
Communication Interface USB/RS485
Sampling Frequency (Hz) 500
Operating Temperature (°C) -10 ~ 60
Weight (g) 80
Ingress Protection (IP Rating) IP67
Experience real-time tactile data visualization. The Lizion Future software platform empowers you to seamlessly process, map, and analyze multi-axis pressure data. Watch how we transform raw sensor feedback into actionable insights.
Discover elevated design
Robotic Dexterous Gripping
Flexible tactile sensor arrays for force closed-loop control and grasping.
Automotive Smart Interiors
Thin-film skins for pressure distribution mapping and HMI seat sensing.
Prosthetic Haptic Feedback
High-performance e-skin for sensory feedback and joint motion tracking.
VR/AR Haptic Interactors
Flexible strain sensors for force feedback and fine gesture capture in VR.
Clinical Patient Monitoring
Flexible sensors for pulse wave monitoring and bedsore prevention.
We Offer Custom Product
Every project is unique. Lizion Future provides comprehensive customization for our flexible tactile sensors. From bespoke geometries and specialized force ranges to tailored spatial resolutions and communication interfaces, our engineering team works closely with you to deliver a sensor perfectly integrated into your specific application.
